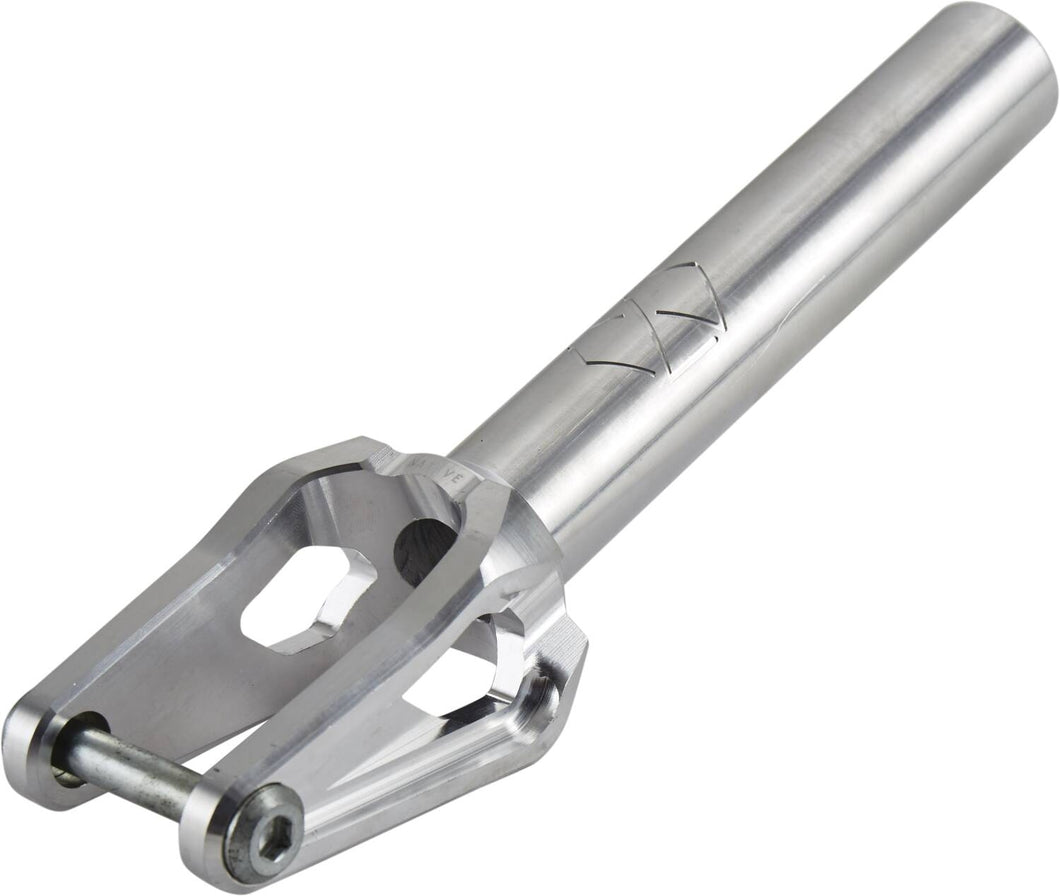

CNC-machined from a single block of aluminum
One-piece
Threadless
Tube length: 157 mm
Weight: 285 g (incl axle and spacers)
Wheel offset: 10 mm
Built-in crown-race
Integrated 8mm thread
Compatible compression systems: HIC, SCS
Wheel diameter compatibility: 100 mm, 110 mm, 115 mm, 120 mm, 125 mm
Wheel hub width compatibility: 24 mm, 30 mm
Axles (diameter): 1 x 8 mm and 1 x 12 mm
Wheel spacers: 12 x 30 mm, 8 x 30 mm, 8 x 24 mm (12 / 8 refers to axle diameter and 30 / 24 refers to hub width)
Compression bolt included
Primary Compress System Compatibility: SCS,HIC
Wheel Hub Width Compatibility: 24 mm,30 mm
Wheel Axle Size Compatibility: 8 mm,12 mm
Compression top cap: No cap
Fork | Wheel PU Width Compatibility: 24 mm,28 mm,30 mm
Fork | Wheel Diameter Compatibility: 100,110,115,120,125
Fork Offset: Offset
Material: Aluminium
Design: Monoblock
Thread: Threadless
Compress System: IHC shim not included
Crown race: Integrated
Spacers to the wheels hub: Washers
Compress screw: No
Starnut: Yes
Tube length: 157
Axis length: 45
